Novel low-cost instrumentation based on an RGB sensor using molecularly imprinted polymers (MIPs) for the rapid detection of aqueous 2-methoxphenidine (2-MXP)

In this paper, we demonstrate a novel, cost-effective sensing system utilizing a molecularly imprinted polymer (MIP) for the indirect colorimetric detection of 2-methoxphenidine (2-MXP). Unlike other colorimetric methods that often require expensive spectrometers and bulky read-out equipment, our system is streamlined, employing basic components such as a digital RGB colour sensor, a white LED, and a 3D-printed opaque enclosure compatible with standard spectrometer cuvettes. The sensor is constructed from readily available commercial components using conventional manufacturing processes. Our approach is versatile, accommodating various liquid analytes, making it suitable for diverse applications, including rapid toxicological screening. To this end, optimization towards the dwell time, number of assays needed, and a dose response for the methodology are explored. Specifically, we focus on the detection of 2-MXP in an aqueous solution within a concentration range of 0.05 to 1 mM. Within range, our system effectively identifies the presence of the analyte and quantifies its concentration. Notably, we achieved a detection limit as low as 0.026 mM, which corresponds to a typical metabolite concentration observed in humans. These results underscore the potential of our prototype sensor for practical applications in the rapid and economical field of diagnosis of MXP intoxication.

1 Introduction

A recent report by the European Monitoring Centre for Drugs and Drug Addiction (EMCDDA, 2024) has highlighted the rise of new psychoactive substances (NPSs) in the EU (Varì et al., 2020). These designer drugs, structurally altered to bypass current legislation, are toxicologically similar to classic illicit drugs (Shafi et al., 2020). Diphenidine (WHO, 2020a) and its derivative methoxphenidine (MXP) (WHO, 2020b) are an example of such compounds and have emerged on the black market for recreational use, typically sold online. MXP, with ketamine-like dissociative effects at 50–100 mg doses, is often a key ingredient in NPS mixtures. Its pharmacological effects and toxicity are largely unknown, and its numerous regioisomers and derivatives (McLaughlin et al., 2016) complicate detection and identification, further hindered by chemical impurities. This is why the demand for detecting psychoactive substances like MXP in samples is high and growing, though analyses with traditional methods pose a challenge.

Common techniques (Woźniak et al., 2020) such as chromatography, infrared (IR), Raman, and mass spectroscopy often require complex sample preparation. To address these challenges, researchers are exploring alternative methods. Studies have shown that X-ray powder diffraction (XRPD) effectively detects psychoactive substances and outperforms IR and Raman spectroscopy in complex compounds (Jurásek et al., 2020, 2022). Successful identification of MXP isomers has also been achieved using gas and high-performance liquid chromatography with mass spectroscopy (McLaughlin et al., 2016). Additionally, new techniques like MALDI-Q-TOF-MS and UHPLC-MS are being developed for detecting MXP and its metabolites in biological samples (Vagnerova et al., 2022). Even though above-mentioned methods are highly effective and sensitive, they are expensive and require specialized laboratory equipment and highly skilled personal. Thus, there is an increasing demand for low-cost, rapid test kits that could be used in the field by, for instance, law enforcement agencies.

In this context, a valuable emerging alternative is the use of molecularly imprinted polymers (MIPs) (Ayerdurai et al., 2023; He et al., 2024). These polymers, due to their inherent affinity for the target analyte, can achieve selective targeting (Hua et al., 2023). For this reason (Martín-Esteban and Sellergren, 2012), MIPs have been utilized in a wide range of applications, in particular, in biosensors and chemosensors (Giancarla et al., 2023). MIP techniques effectively target small molecules (molecular weight < 1500 g mol⁻¹) (Turner et al., 2006). They have been used for selective detection in various applications, such as melamine in milk (Caldara et al., 2022), antibiotics in milk (Bitas and Samanidou, 2018), and pesticides in environmental samples (Marć et al., 2021). MIP-based sensors offer advantages: a low price point, ease of implementation, robustness, and stability (Bahrani et al., 2021). Furthermore, MIPs are effective at biological concentration levels, making them suitable for detecting NPS in various scenarios (Musiał et al., 2022). Studies have demonstrated MIP-based detection of synthetic cathinones and amphetamines in urine (Sánchez-González et al., 2019) and 4-methyldimethcathinone (4-MDMC) (Chen et al., 2021), as well as MXP and its regioisomers (Lowdon et al., 2018). This said, one of the main limitations of MIP technology lies in the deposition of the receptors (Caldara et al., 2023), with a strong alternative being the utilization of MIP-based dye displacement assays that enable the indirect naked-eye detection of compounds. These assays involve competitive binding between the target molecule and a dye for binding sites within the MIP matrix. When the target molecule binds to the MIP, it displaces the dye, causing a measurable change in the absorbance of a solution, which correlates with the concentration of the target molecule in the sample. This approach enables sensitive and specific detection of analytes ranging from small molecules to biomacromolecules, depending on the design and synthesis of the MIPs. This methodology has already been highlighted for the detection of 2-MXP (Lowdon et al., 2019), amphetamine (Lowdon et al., 2021), and xylazine (Marroquin-Garcia et al., 2024). Researchers (Heidt et al., 2021; Goossens et al., 2023) have built upon these optical MIPs, providing microfluidic solutions coupled with spectrophotometers for the rapid on-site detection of compounds. This said, to date, colorimetric detection has tended to be performed using expensive commercial spectrophotometers (Ye et al., 2018; Wang et al., 2023), though it is possible to utilize low-cost components to achieve the same result.

This work therefore presents a novel, straightforward, and low-cost sensing system based on MIP particles deposited at the bottom of the cuvette for the indirect colorimetric detection of aqueous 2-MXP. This low-tech solution is characterized by a custom in-house low-cost photometer setup (Dupont et al., 2024) that employs an RGB sensor and an LED. Constructed from readily available commercial components, the system can be assembled in a common laboratory without the need for a cleanroom. Thus, the proposed methodology facilitates the cost-effective, sensitive (as low as 0.1 mM), and rapid colorimetric analysis of liquid analytes with simplistic equipment.

2 Materials and methods

2.1 Reagents, components, and equipment

All chemicals and reagents were purchased from Sigma-Merck. All weights were measured on an analytical balance ACS 100-4M, from KERN (KERN, 2024), Germany. All solution volumes were measured using a one-channel Eppendorf manual mechanical pipette with 1000 µL retractable tips (epT.I.P.S.^® Standard) (Eppendorf Research, 2024). All optical measurements were conducted inside a disposable plastic cuvette (Avantor by VWR, 2024) (VWR 612-5503) made of polymethyl methacrylate (PMMA) with dimensions of $\mathrm{10}\times \mathrm{10}\times \mathrm{45}$ mm². To manufacture all 3D-printed components, we employed the 3D printer Ultimaker S5 Pro (Ultimaker, 2024a) with recommendations by the vendor Ultimaker Tough PLA (polylactic acid), black, and 3D printing filament of 2.85 mm diameter (Ultimaker, 2024b). According to the literature (Avantor by VWR, 2024), the tensile Young's modulus of PLA is 3.25±1.19 GPa, the melting point is 151.8 °C, and the glass transition temperature (T_g) is 59.1 °C. PLA is a biocompatible and biodegradable plastic that has previously been used for similar applications (Diliën et al., 2017).

2.2 Synthesis and preparation of MIP-based assay

The methodology surrounding the synthesis of the MIPs for the detection of 2-MXP and their subsequent conversion into the dye displacement assay was taken directly from prior work (Lowdon et al., 2019). In short, methacrylic acid (MAA, 1.02 mmol), ethylene glycol dimethacrylate (EGDMA, 1.7 mmol), and azobisisobutyronitrile (AIBN, 0.30 mmol) were dissolved in dimethyl sulfoxide (DMSO) in the presence of 2-MXP (0.17 mmol). The mixture was purged with N₂ and polymerized at 65 °C for 12 h. MIPs were milled using a Fritsch Planetary Micro Mill (Fritsch, 2024) and sieved to obtain microparticles smaller than 100 µm. A sieve was used for this process, with a 100 µm mesh, collecting any particles that passed through. The template molecule was removed by Soxhlet extraction (Pirzada and Altintas, 2021) with acetic acid and methanol (1:10 $v/v$), followed by methanol, and verified using FTIR. The resulting MIP powder was then dried at 60 °C overnight. Further, 20 mL of a 1 mM aqueous malachite green solution was added to 500 mg of MIP powder (microparticles smaller than 100 µm) and shaken at 250 rpm for 2 h. The suspension was then filtered, and the collected solid was washed with distilled water until the filtrate was colourless. The coloured MIP powder was then dried overnight at 60 °C, yielding the MIP-based dye displacement assay.

2.3 Colorimetric measurement system

The colorimetric measurement system (Fig. 1) has been previously developed and comprehensively described in a prior study (Dupont et al., 2024). In essence, this system consists of a white LED (400–880 nm, 5500 K colour temperature, VLMW33S2V1-5K8L-08) and a digital RGB sensor (VEML3328, Vishay, Malvern, PA, USA), enclosed within a black 3D-printed opaque PLA housing designed to accommodate a commercially available plastic cuvette. These components were placed 15 mm above the bottom of the enclosure. To mitigate ambient light interference, the enclosure is equipped with an opaque cap. A complete list of components used in the colorimetric system is presented in Dupont et al. (2024).

Figure 1 Prototype overview: (a) cross-sectional schematic view; (b) frontside with main PCB, cuvette, and cap; and (c) backside with unmounted LED PCB. This figure was partially adapted from Dupont et al. (2024).

The sensor interface circuit was based on the SensorXplorer and VEML3328-SB development kits (Vishay, Malvern, PA, USA), with a customized layout tailored specifically for this application. Data collection was facilitated by the VEML3328_Xplorer_v1.4.1 software, which streamlined device configuration and data management. Figure 2 shows the RGB sensor channel normalized sensitivity alongside the absorbance spectrum of the malachite green dye. The red channel (with peak sensitivity at 610 nm) was the only channel that overlapped with the dye's maximum absorbance wavelength (λ_max=621 nm; Mohseni et al., 2014). Therefore, the red channel was selected as the best choice for this analysis and was the only channel used in the remaining experiments. In principle, the system for this particular application can be further optimized; for example, the white LED can be replaced by a red LED, and the RGB sensor can be replaced by a corresponding photodiode with higher sensitivity to red light. However, in this study, we deliberately decided to maintain the generality of the system, suitable for detecting various dyes, in order to ensure the cost effectiveness of the developed system.

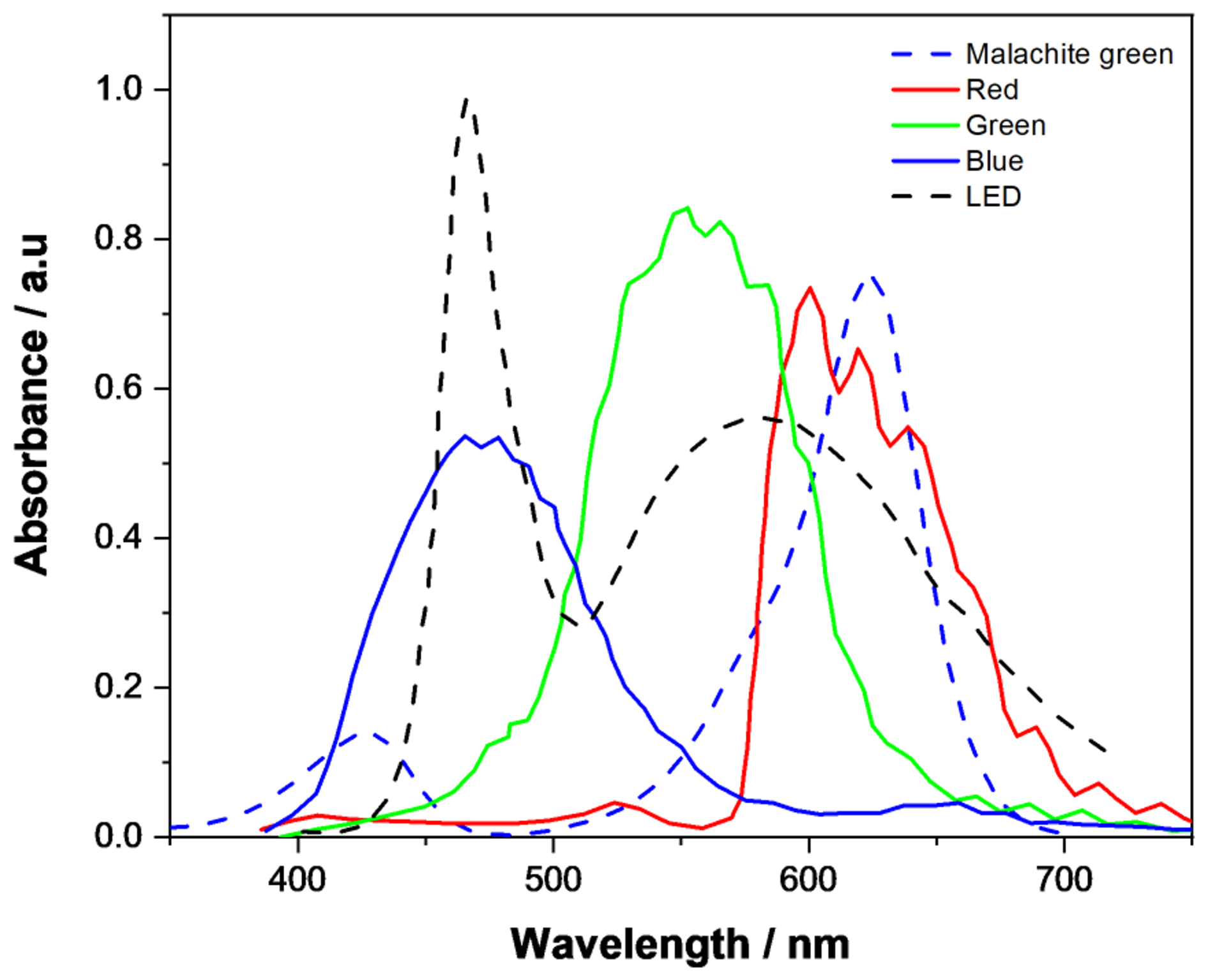

Figure 2 RGB sensor channel (red, green, and blue) normalized sensitivity and malachite green dye absorption spectrum.

2.4 Analysis of aqueous samples

To assess the signal variation from the colorimetric measurement system, the MIP-based dye displacement assay was introduced into the plastic cuvette, followed by the addition of 2.5 mL of the analyte solution (2-MXP). The cuvette was then placed within the measurement system, where the RGB spectra were recorded (Fig. 3). As the assay is designed towards the colorimetric detection of 2-MXP, there should be trends observable when the assay is incubated with the displacement assay. This study investigated multiple parameters: the mass of the MIP assay applied (ranging from 2.5 to 15 mg), the time dependency of dwell time before conducting measurements (spanning 0 to 70 min), and the concentration of the analyte (0.05 to 0.5 mM).

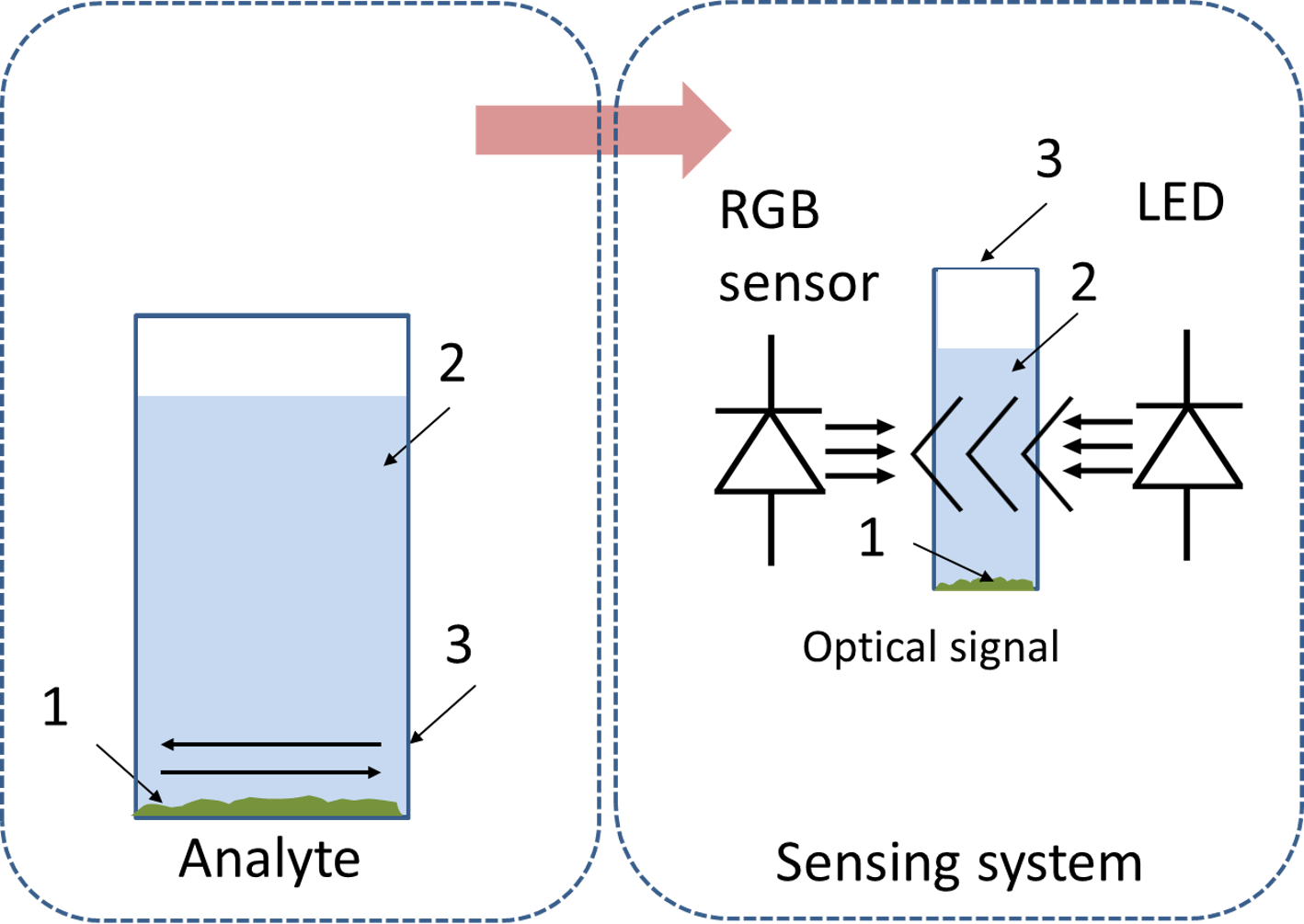

Figure 3 A schematic drawing outlining how the MIP powder is allowed to sediment before the optical signal is recorded between the white LED and the RGB sensor. 1 – MIP powder, 2 – a test specimen, 3 – a cuvette.

3 Results and discussion

3.1 Dwell time dependency study

As the MIP utilized in the experiments is specifically engineered towards the detection of 2-MXP and preloaded with malachite green dye, exposure to aqueous 2-MXP results in the dye being released into the surrounding solution. Thus, this provides a robust mechanism of indirect colorimetric detection, only possible as the assay has been tailored towards 2-MXP. If the MIP were not specifically designed for 2-MXP detection, no dye displacement would occur in its presence. This has been highlighted in previous studies (Lowdon et al., 2018, 2019) where the cross-sensitivity of the detection method to other chemicals and contaminants in solutions is demonstrated to have a high degree of selectivity and sensitivity. Subsequently, the amount of malachite green displaced from the MIP directly correlates with the concentration of 2-MXP in the solution, with the dwell time and mass of assay directly affecting this. It can therefore be assumed that these factors could also impact on the sensing apparatus, with these being variables of high importance for consideration. Therefore, to ensure that the assay does not directly interfere and diffract the light being passed through the cuvette, impacting the measurements, the dwell time of sample analysis was investigated. To this end, the RGB signal was monitored as a function of time after applying a known volume of analyte inside the cuvette that contained the MIP-based assay. The experiment was then conducted over 70 min, monitoring the stability of the resultant signal (Fig. 4). Figure 4 clearly illustrates that the RGB signal output changes significantly within the first 8 min (section 1 of the plot). During this time, most of the large MIP particles, which have the greatest impact on the light transmission between the LED and the RGB sensor, gradually settle to the bottom of the cuvette. Between 8 and 20 min (section 2), the number of residual particles in suspension, likely the smallest ones, decreases significantly, causing the signal to nearly stabilize. After 20 min (section 3), the RGB signal stabilizes, and visual confirmation showed no remaining MIP particles in suspension. For rapid analyses, the RGB signal can be reliably used after the first 8 min (section 2), provided that the system remains stable, and no shaking or vibration occurs. However, for the most accurate data, a dwell time of 20 min (section 3) is recommended. It is important to note that, as outlined in Dupont et al. (2024), the particles deposited at the bottom of the cuvette do not affect the RGB sensor output.

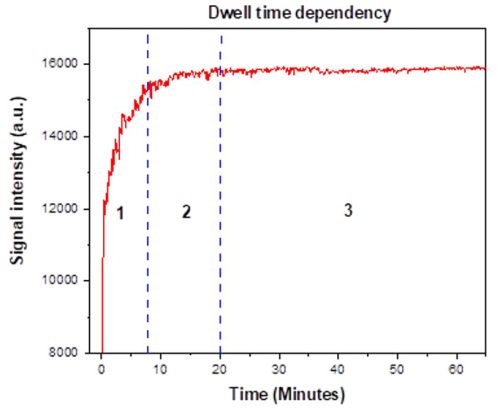

Figure 4 The output signal of the RGB sensor over time (minutes) is divided into three distinguishable sections (sections 1, 2, and 3).

3.2 Mass dependency study

To study the impact that the mass of assay has on the sensitivity of the platform, an experiment was devised where 2.5 mL aliquots of varying concentrations (0.05–1 mM) were added to different masses (2.5–12.5 mg) of MIP powder within the cuvette. From these experiments the mass of MIP-based assay could be plotted against the concentration of 2-MXP, generating a matrix that could be referred to for the perceived detection of the analyte (Fig. 5).

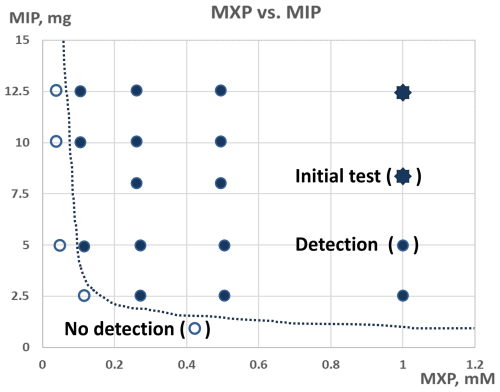

Figure 5 A plot demonstrating the mass of MIP-based assay against the concentration of 2-MXP in solution and the subsequent perceived detectability.

The plot features two distinct zones, separated by a dashed line: the “detection” zone and the “no detection” zone. The detection zone indicates that the target concentration of 2-MXP can be identified with the appropriate amount of MIP, while the no detection zone signifies that 2-MXP cannot be detected regardless of the MIP quantity used. The initial test result is marked with an eight-point star. Points within the detection zone are represented by filled dots, whereas those outside are shown with unfilled dots. This plot is useful for estimating the amount of MIP needed to detect various 2-MXP concentrations. As anticipated, higher concentrations of 2-MXP require less MIP, while lower concentrations necessitate more. For instance, detecting a 1 mM 2-MXP concentration requires only 2.5 mg of MIP, whereas detecting a 0.1 mM concentration requires at least 12.5 mg of MIP. Additionally, using a smaller amount of MIP can be advantageous because fewer particles settle more quickly, leading to a more stable RGB signal.

3.3 Concentration-dependent studies

As demonstrated in Sect 3, a dwell time of 20 min provides the most accurate results. Therefore, the studies were conducted with a 20 min duration as follows. Two reference cuvettes were prepared: one with 2.5 mL of water and another with 2.5 mL of water containing 12.5 mg of MIP powder. The purpose of the latter was to verify that particles settled at the bottom of the cuvette do not significantly impact the sensor readings. Additionally, four cuvettes were prepared with varying concentrations of the analyte 2-MXP: 0.5, 0.25, 0.1, and 0.05 mM, as shown in Fig. 6.

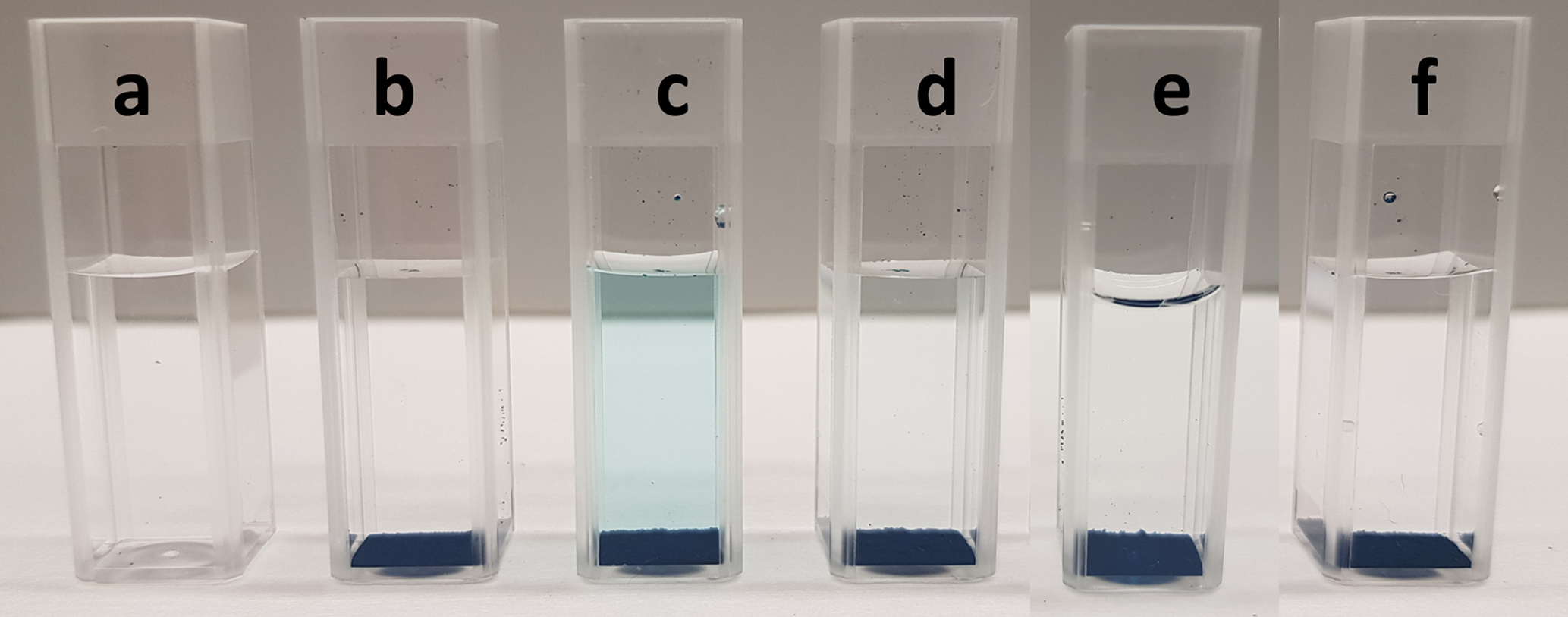

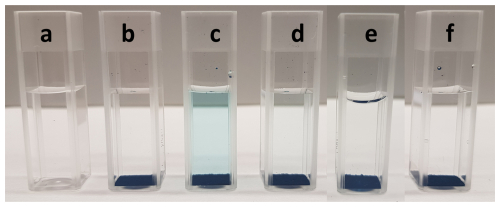

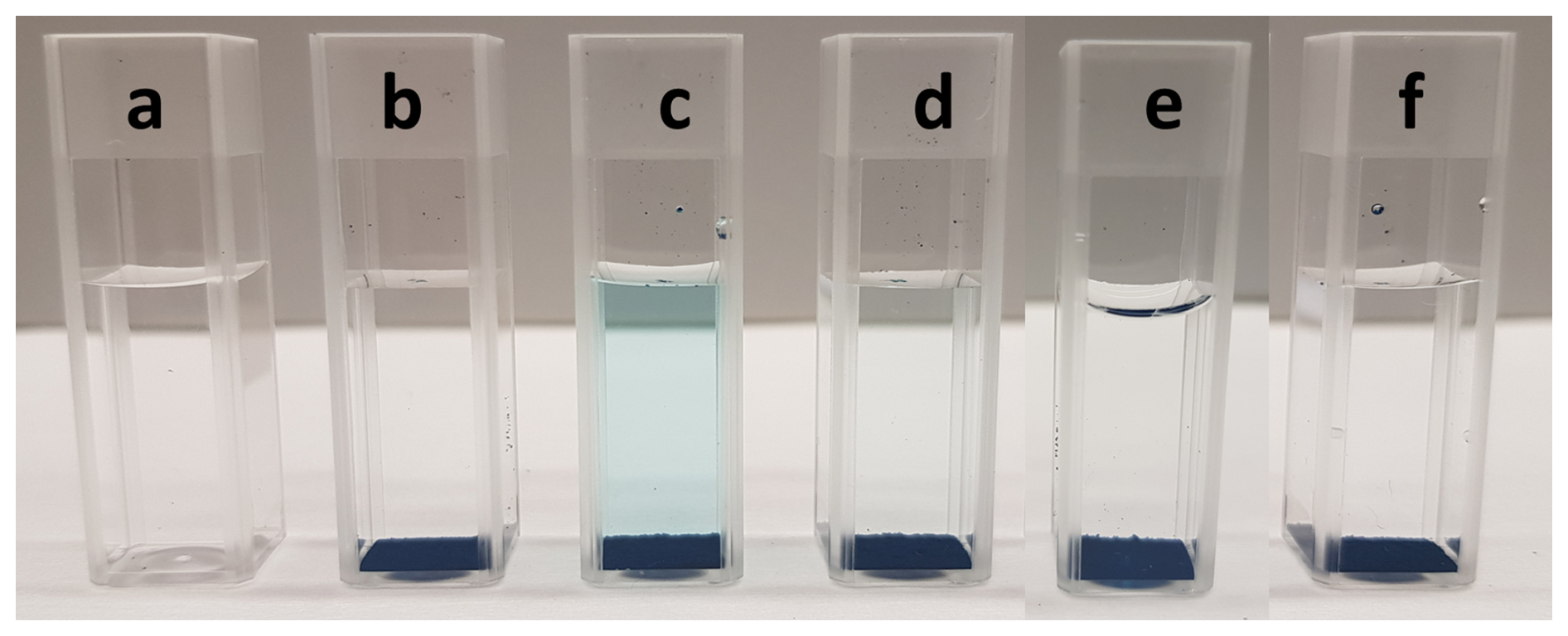

Figure 6 A reference cuvette with 2.5 mL of water (a), another reference cuvette with 2.5 mL of water and 12.5 mg of MIP powder (b), and four cuvettes with 12.5 mg of MIP powder and varying 2-MXP concentrations: 0.5 mM (c), 0.25 mM (d), 0.1 mM (e), and 0.05 mM (f).

Visual inspection revealed that cuvettes a and b showed no dye displacement, while cuvettes c through f exhibited decreasing levels of displaced malachite green dye as the analyte concentration decreased. This trend was further confirmed with the RGB setup, which clearly differentiated between the various 2-MXP concentrations (Fig. 7). Among the concentrations tested, 0.05 mM showed a signal intensity comparable to water, with a distinguishable signal first appearing at 0.1 mM. At 0.25 mM, the amount of displaced dye increased noticeably, and at 0.5 mM, there was a marked exponential increase in dye displacement.

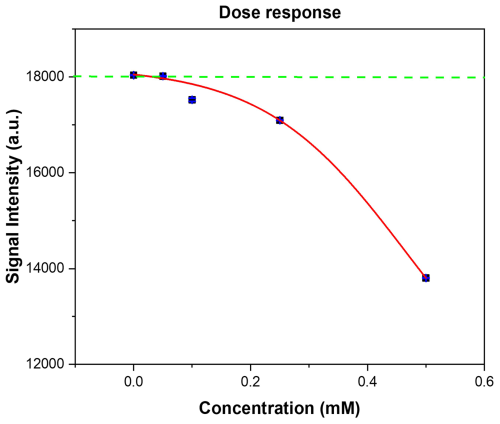

Figure 7 The RGB signal output stimulated from the increasing absorbance of the displacement of malachite green from 12.5 mg of assay against the exposure concentration of 2-MXP (0.05–0.5 mM). Each point represents the average of 50 RGB sensor readings. and the standard deviation is less than 2 % of the average (blue lines).

The resulting dose response graph was plotted using Origin x and the data analysed with a dose response ($y=A\mathrm{1}+(A\mathrm{2}-A\mathrm{1})(\mathrm{1}+\mathrm{10}\mathit{°}((\mathrm{LOG}x\mathrm{0}-x)*P)$)) fitting. The resulting trend (red line) line yielded an R² of 0.99962, demonstrating a strong correlation between the amount of dye displaced and the signal intensity observed. Due to the extremely low internal standard deviation of the results, the theoretical limit of detection (LoD) of the sensor is 0.021 mM when calculated using the 3σ methodology. This is well within the calculated physiological range that typically occurs during human metabolism (Elliott et al., 2015) after ingesting a standard dose of 2-MXP (from 75 to 120 mg) (WHO, 2020a) and therefore highlights the sensitivity of the system.

4 Conclusions

In this work, a simple and cost-effective MIP-based sensing system for the indirect colorimetric detection of 2-methoxphenidine (2-MXP) was demonstrated. Unlike typical colorimetric systems that rely on spectrometers, this system utilizes an RGB sensor and a corresponding LED. Constructed from readily available commercial components, the system can be manufactured in a standard laboratory environment using conventional industrial methods, without the need for a cleanroom.

The developed colorimetric measurement system, based on RGB sensors and MIP receptors, effectively detects 2-MXP in aqueous solutions at concentrations below 1 mM. It can distinguish between concentrations of 1, 0.5, 0.25, and 0.1 mM 2-MXP. The analysis time is 20 min, primarily due to the time required for the MIP powder to settle at the bottom of the cuvette. This sediment does not affect the measurement system's output signal, as confirmed by previous studies.

Additionally, the study established the detection window for MIP–MXP interactions, specifying the amount of MIP needed to detect various 2-MXP concentrations. The tested concentration range (from 1 to 0.1 mM) is relevant for real-life applications, as it corresponds to concentrations found in human metabolism after ingesting typical oral doses of 2-MXP. This MIP-based sensing method is thus suitable for detecting a broad range of specific liquid analytes associated with human metabolism.
